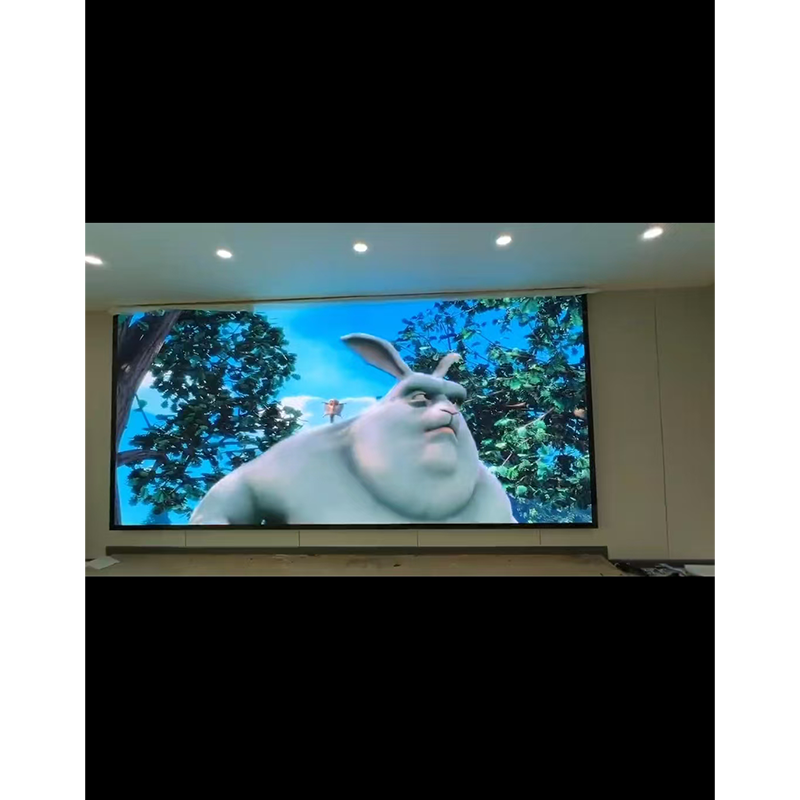

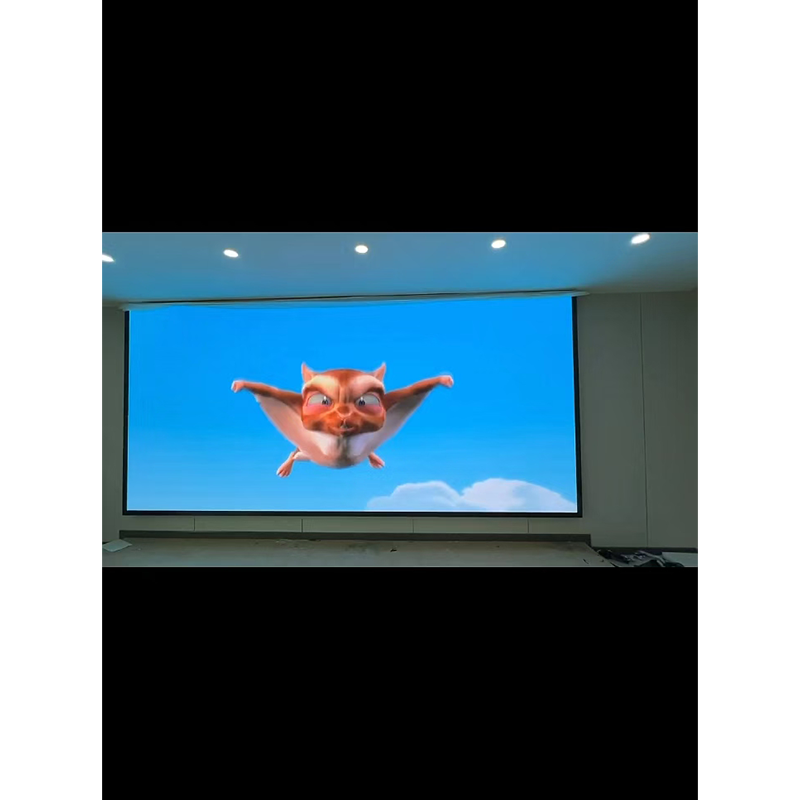

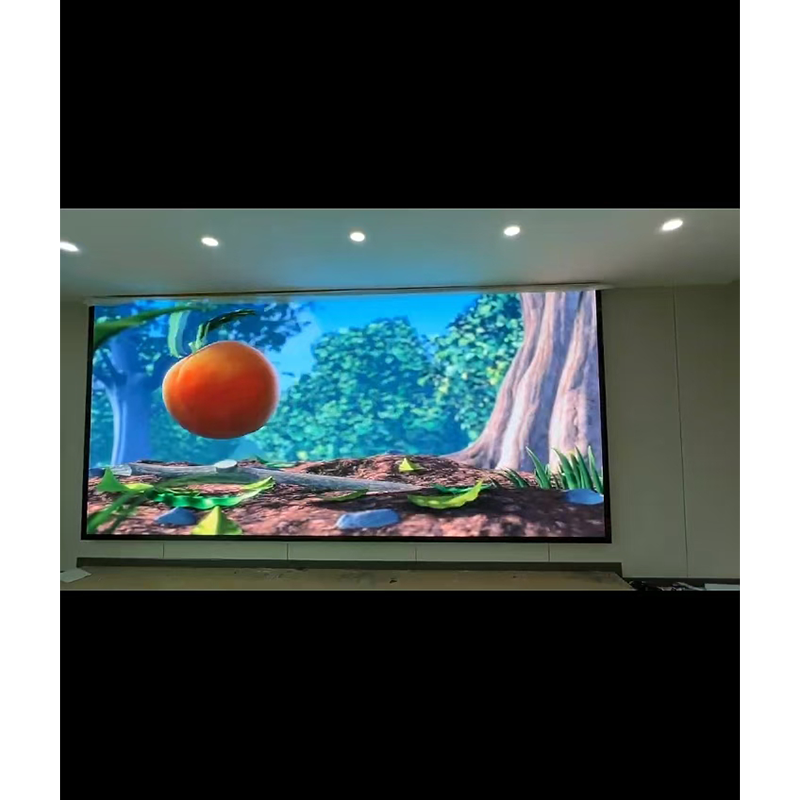

Compact P1.2 P1.5 P1.8 P2 P2.5 P3 Ultra HD Fixed LED Display Board

Fine Pitch Led Display Screen : P1.25, P1.538 , P1.667, P1.86, P2

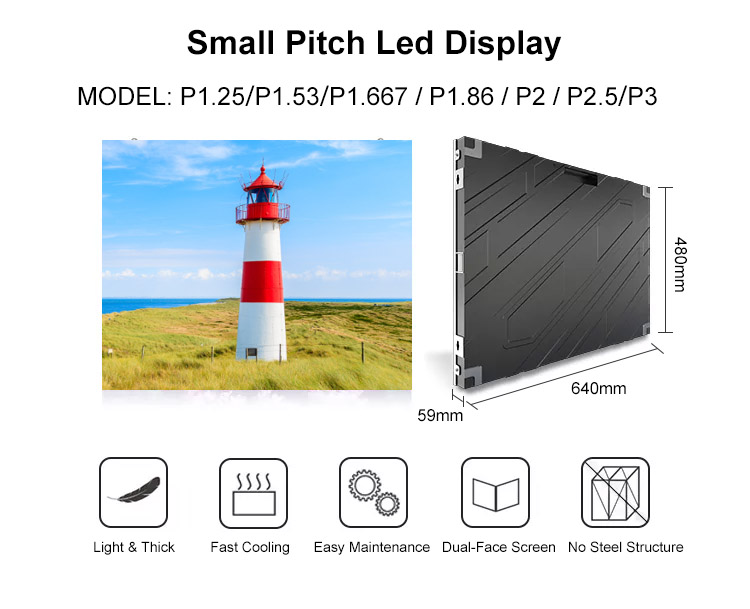

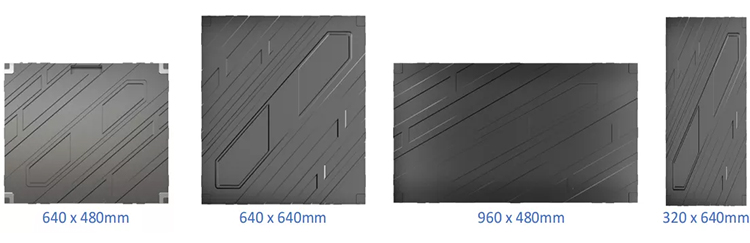

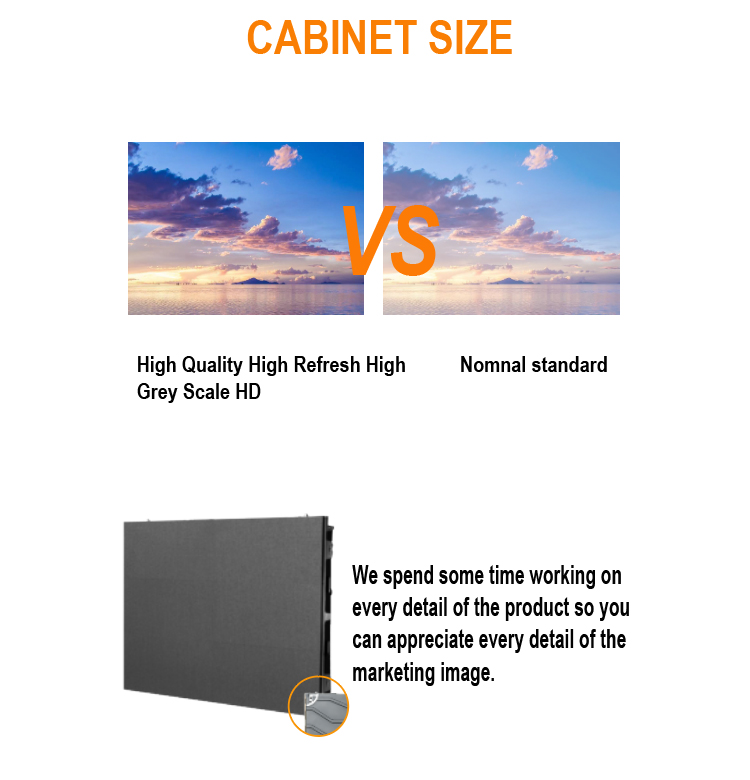

640*480mm Die-cast aluminum cabinet

Exceptional Visual Clarity: The small-spacing series delivers high contrast and grayscale levels, translating to sharper and more detailed visuals for a superior viewing experience.
Lightweight and Portable Cabinet: The cabinet is both lightweight and slim, facilitating effortless disassembly and transportation.
Durable and Long-Lasting: Utilizes an imported die-casting aluminum alloy integrated molding process, with internal fixed reinforcement for tensile and shock resistance. It features self-cooling and a remarkable ten-year lifespan.

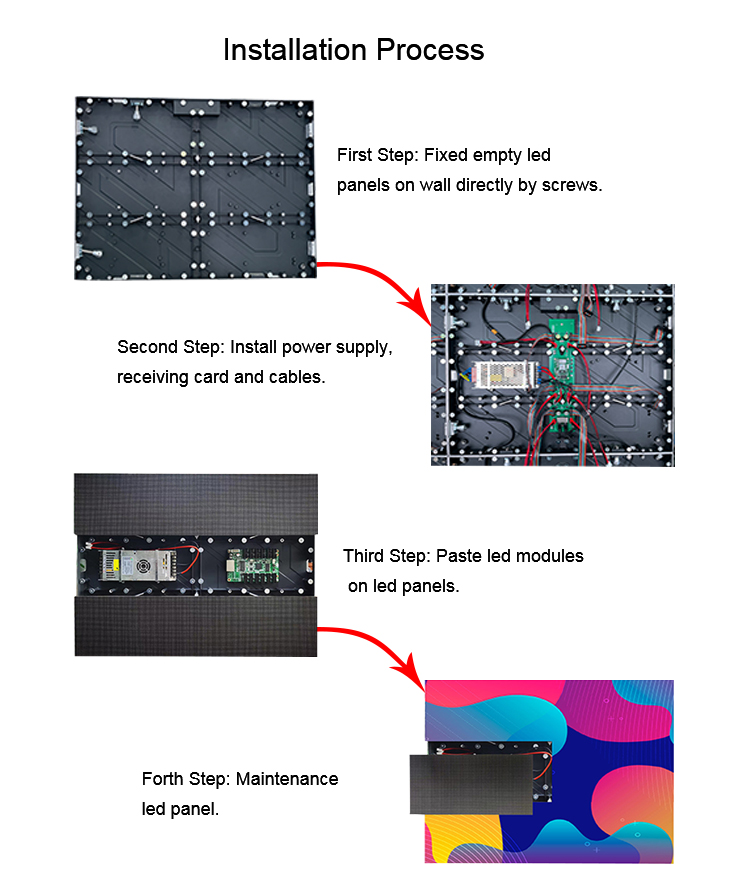

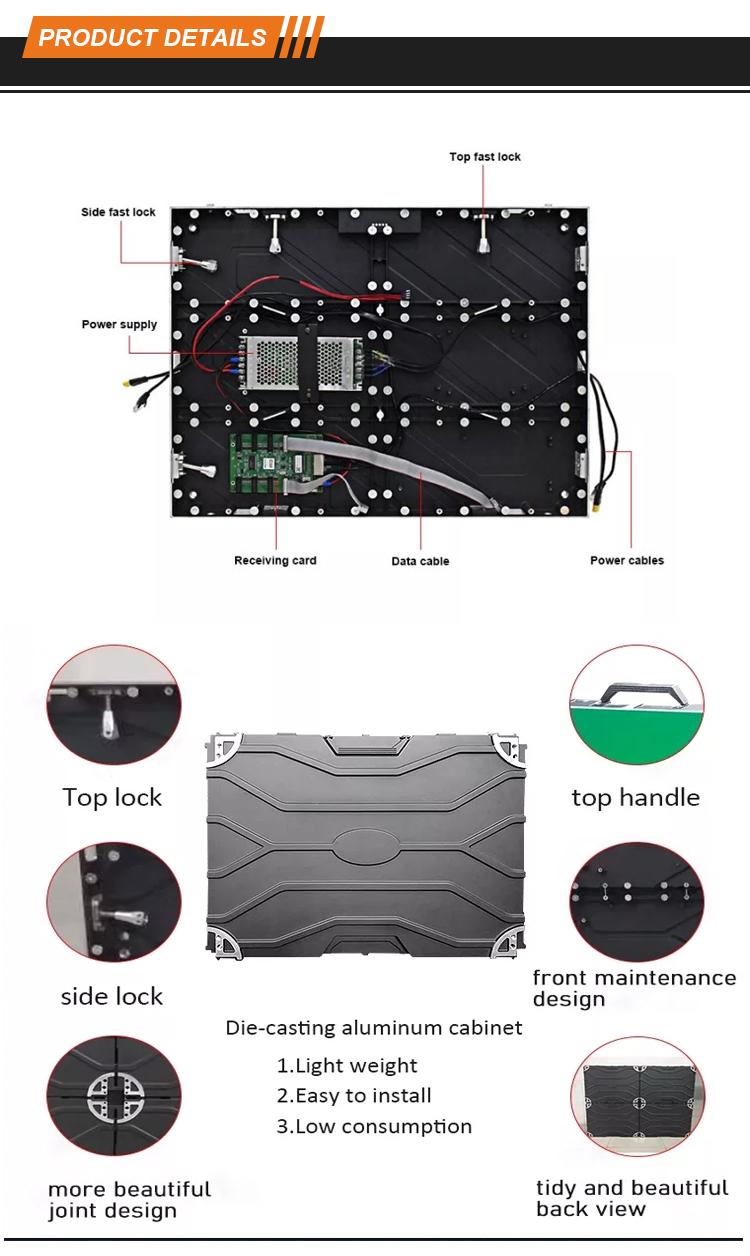

Efficient Installation and Disassembly: Secured by four side lock buckles, it allows for easy hoisting and stacking with balanced stress, enabling quick installation and removal.
User-Friendly Monitoring: The humanized power supply and signal indicator lights simplify the process of checking the screen's working status, enabling prompt troubleshooting in case of issues.
Premium Quality Connectors: Professional aviation plugs are used for connectors, ensuring high quality and safety in signal and power transmission.

Inquiry Contact Us

Description

Please contact us to serve you!" >

Is there a problem?
Please contact us to serve you!

+86 19129361953

[email protected]

Inquiry

Description

1. Precision-Engineered Cabinet: The CNC precision machined die-casting aluminum cabinet is highly accurate, ultra-lightweight, and thin, minimizing space requirements. It supports wall-mounted installation without the need for dedicated maintenance channels.

2. Superior Image Quality: Capable of reproducing low brightness and high gray images with remarkable delicacy and realism. The ultra-wide viewing angle ensures excellent display quality from various perspectives.

3. Outstanding Visual Performance: Boasts high brightness, contrast, and consistency, providing an immersive visual experience.

4. High Refresh Rate Display: With a high refresh rate, it offers fast frame changing, effectively eliminating ghosting and trailing, ensuring smooth motion and clear visuals.

5. Energy-Efficient and Quiet Operation: Consumes low power, generates minimal heat, and features efficient heat dissipation with no noise, making it suitable for various environments.

6. Long-Term Reliability: With a service life exceeding 100,000 hours, the product is highly stable and reliable. It also supports maintenance activities, resulting in low long-term maintenance costs.

Small pitch led display screen parameters
Model number	P 1 . 25	P 1 . 25	P 1.538	P 1.667	P 1.667	P 1.86	P 2	P 2
Pixel spacing	1.25mm	1.25mm	1.538mm	1.667 mm	1.667mm	1.86mm	2mm	2mm

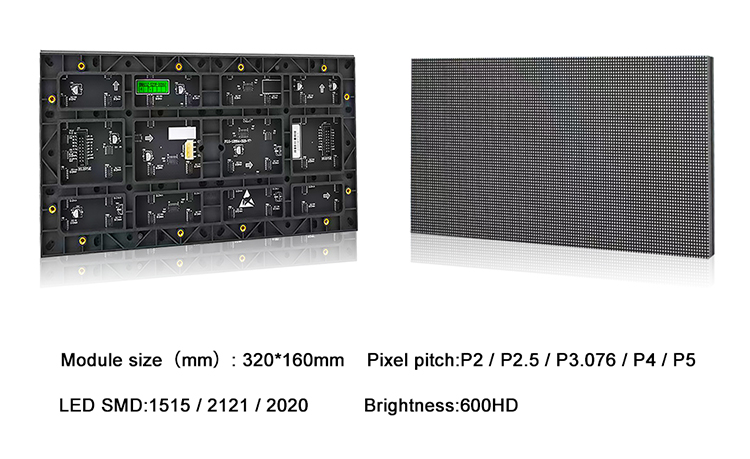

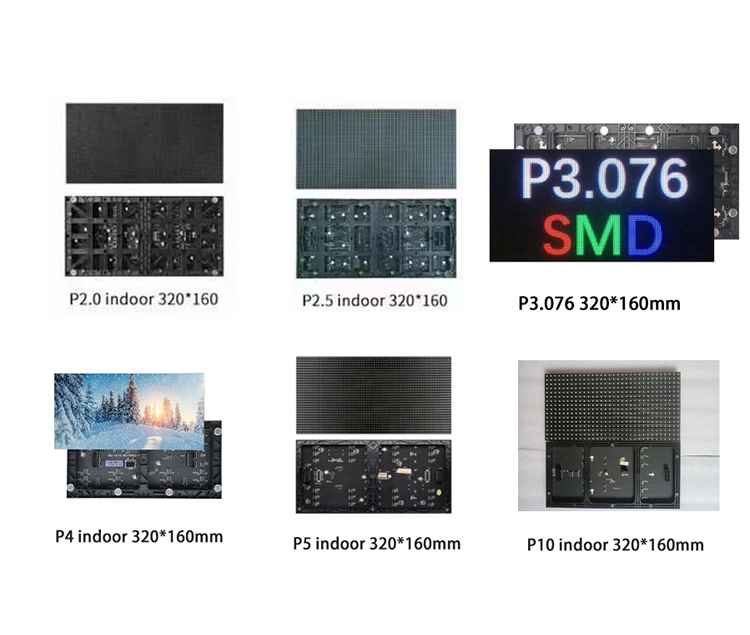

Module size	320x160mm	320x168mm	320x160mm	320x160mm	240x240mm	320x160mm	256x128mm	320x160mm
Encapsulation mode	SMD1010	SMD1010	SMD1212	SMD1212	SMD1212	SMD1515	SMD1515	SMD1515
Physical density	640000dots/m2	640000dots/m2	423866dots/m2	359856dots/m2	359856dots/m2	289050dots/m2	250000dots/m2	250000dots/m2
Scanning mode	1/64 scans	1/45 scans	1/52 scans	1/48 scans	1/27 scans	1/43 scans	1/32 scans	1/40 scans
Module brightness	600CD/m2	600CD/m2	650CD/m2	650CD/m2	700CD/m2	700CD/m2	800 CD/m2	800 CD/m2
Module resolution	256x128/dots	240x135/dots	208x104/dots	192x96dots	144x144/dots	172x86/dots	128x64/dots	160x80/dots
Refresh rate	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Life span	≥100000 Hours	≥100000 Hours	≥100000 Hours	≥100000 Hours	≥100000 Hours	≥100000 Hours	≥100000 Hours	≥100000 Hours
Viewing distance	1.7m-50m	1.7m-50m	2m-50m	2.5m-60m	2.5m-60m	2.5m-60m	3m-80m	3m-80m
Average power	≤280W/m2	≤280W/m2	≤280W/m2	≤280W/m2	≤280W/m2	≤280W/m2	≤280W/m2	≤280W/m2
Maximum power	≤800W/m2	≤800W/m2	≤800W/m2	≤800W/m2	≤800W/m2	≤800W/m2	≤800W/m2	≤800W/m2
Frame change frequency	50-60HZ
Grayscale	12-16bit
Continuous working time	≥7×24hours,Supports continuous and uninterrupted display
Mean time between failures	≥10000 Hours

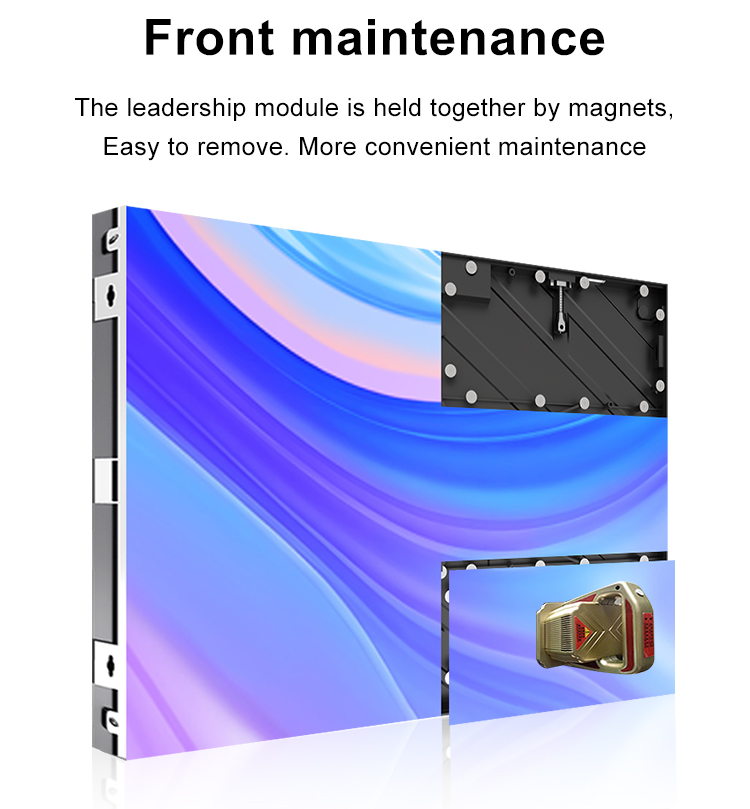

Maintenance/installation method	Front/back maintenance and installation
Discrete out-of-control point	≤0.0001,It's zero when it leaves the factory
Blind spot rate	≤0.0001,It's zero when it leaves the factory
Continuous out-of-control point	0
Waterproof grade	IP43

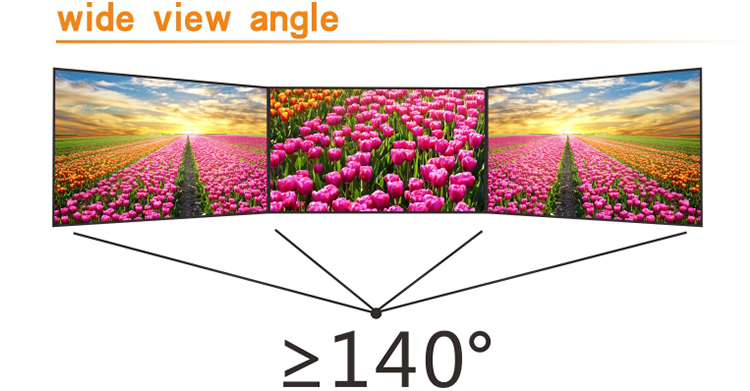

Visual Angle	160°/140°
Operating temperature	‘-45℃ +50℃
Working humidity	30-55%
