Digital Advertising LED Display Billboard Screen

Description

A brief description:

Outdoor Led Display Screen : P2, P2.5 , P3, P4, P5, P6， P8， P10

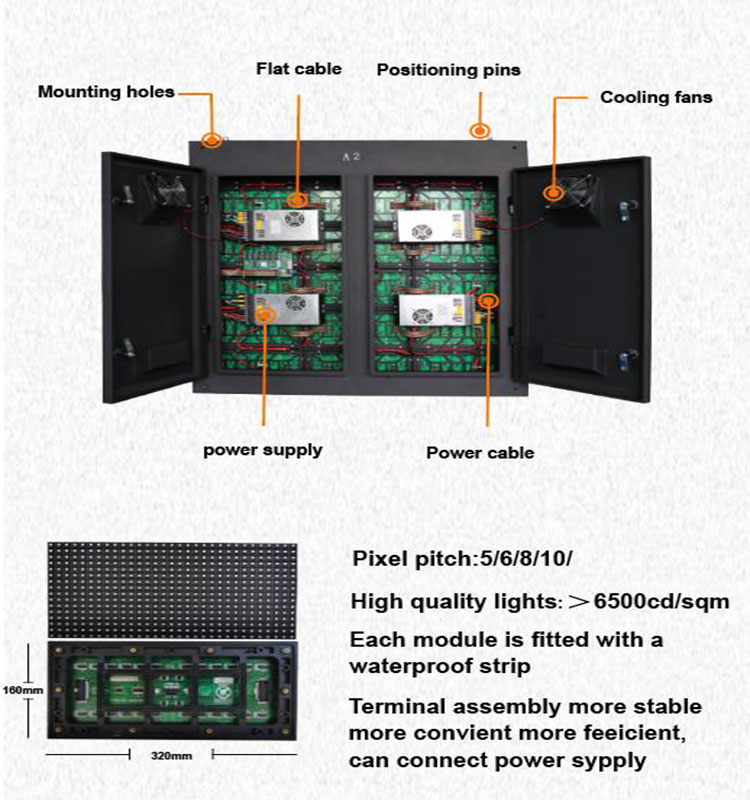

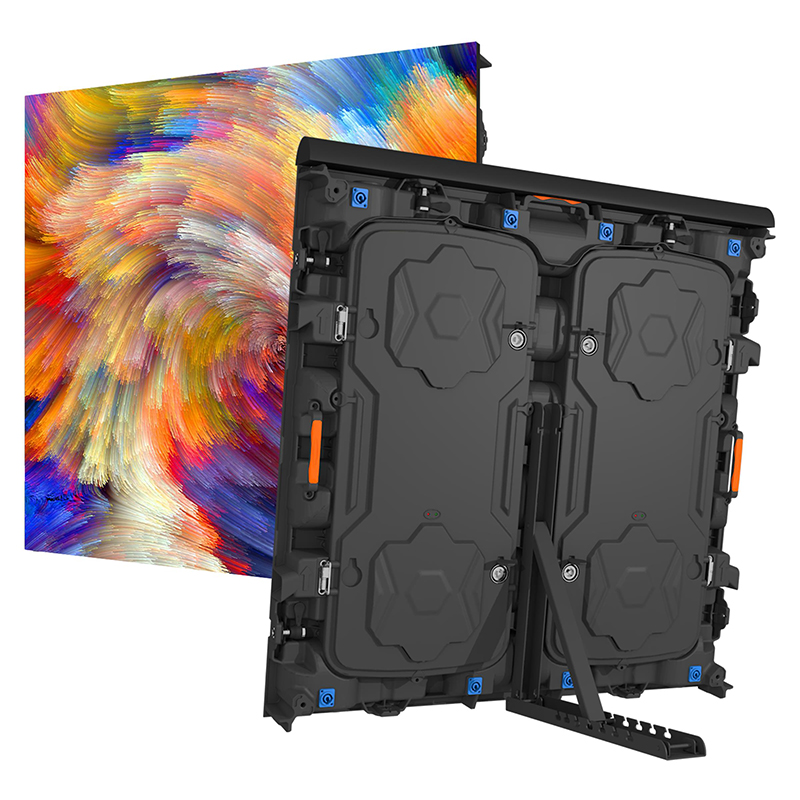

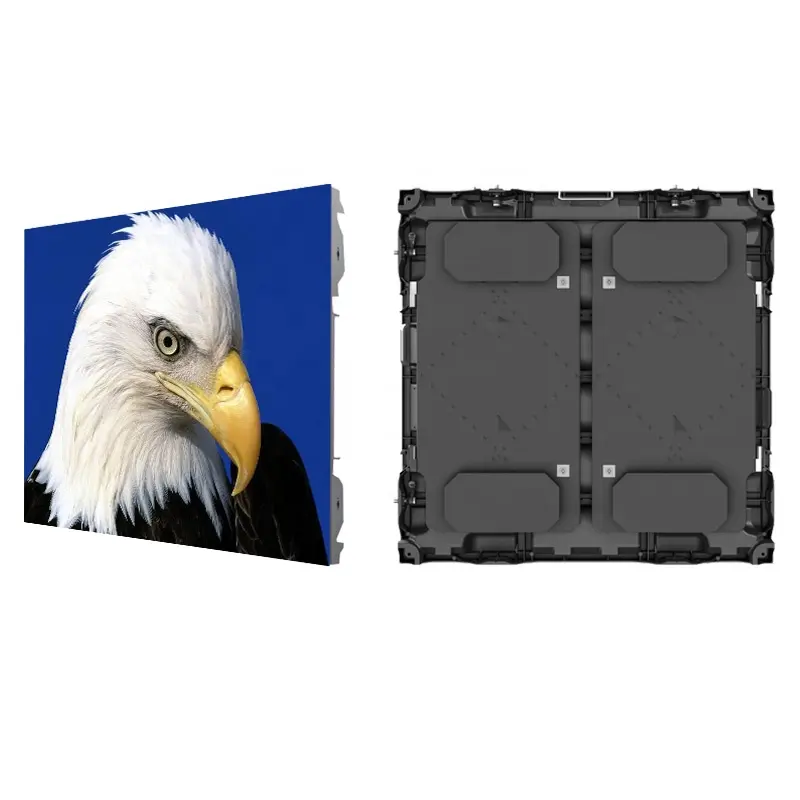

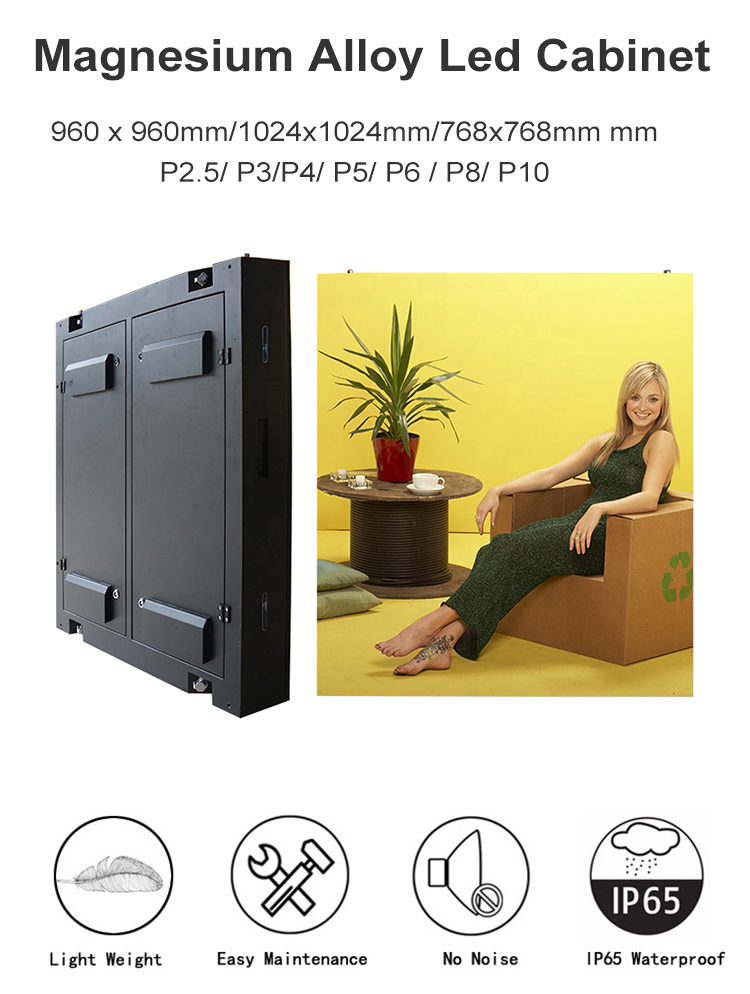

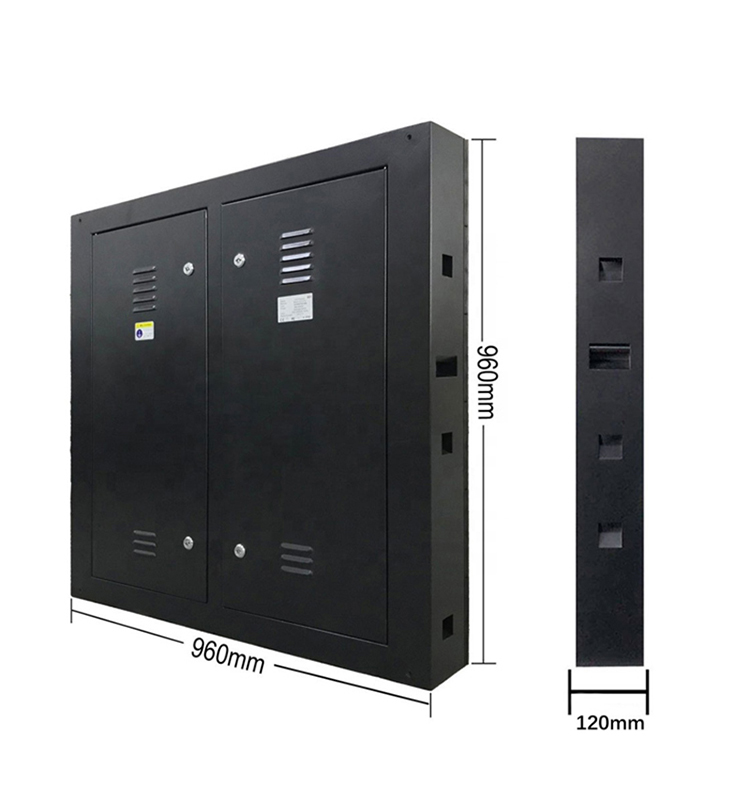

Simple Waterproof 960*960mm cabinet

1.With an IP65 rating or higher, our screens excel in resisting water ingress and UV rays, making them a reliable choice for outdoor use.

2.Our LEDs are crafted from eco-friendly, non-toxic materials, offering a sustainable alternative to mercury-containing fluorescent lamps.

3.These outdoor LED screens are designed to be energy-efficient and environmentally friendly, while also withstanding the rigors of outdoor environments.

4.Boasting low power consumption, our screens operate efficiently, consuming minimal electricity, making them a cost-effective solution.

5.Enjoy long-lasting performance with LEDs that can operate for up to 100,000 hours under suitable current and voltage conditions.

Detailed Description:

1.The LED's unwavering durability and solidity stem from its complete encapsulation in epoxy resin, making it superior in strength to both light bulbs and fluorescent tubes. With no loose parts inside, it resists damage effectively.

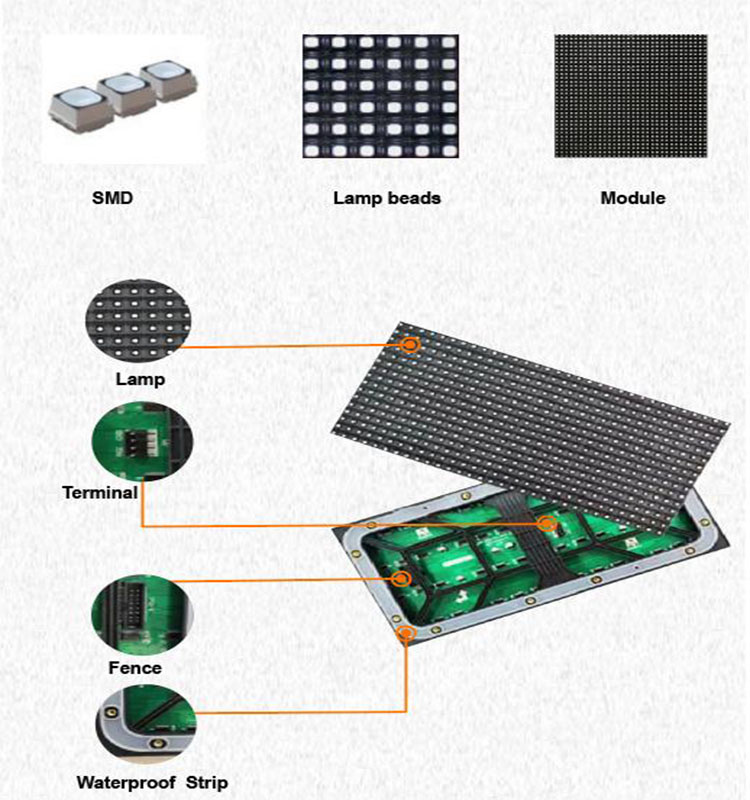

2.Employing state-of-the-art surface mounted LED packaging technology, it surpasses DIP in terms of visual angle and consistency, ensuring a seamless viewing experience.

3.The LED excels in delivering high-definition visuals, accurate color reproduction, and robust processing capabilities, making it a standout choice for demanding applications.

4.Boasting impressive refresh rates and grayscale performance, along with a stunning display effect, it is suitable for a diverse range of environments.

5.The intelligent environment controller automatically adapts screen brightness to varying ambient light conditions, providing optimal viewing comfort while conserving energy.

Product Parameter Table:

Outdoor led display screen parameters
Model Number：	P2.5	P2.5	P 3	P 3.076	P 4	P 4	P 5	P 6	P 8	P 8	P 10
Pixel Spacing:	≤2.5mm	≤2.5mm	≤3mm	≤3.076mm	≤4 mm	≤4mm	≤5mm	≤6mm	≤8mm	≤8mm	≤10mm
Module Size:	320x160mm	160x160mm	192x192mm	320x160mm	320x160mm	256x128mm	320x160mm	192x192mm	320x160mm	256x128mm	320x160mm
Encapsulation Mode:	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921	SMD1921	SMD2727	SMD2727	SMD3535	SMD3535	SMD3535
Physical Density:	≥160000 points/m2	≥160000 points/m2	≥111111 points/m2	≥105688 points/m2	≥62500 points/m2	≥62500 points/m2	≥40000 points/m2	≥27777 points/m2	≥15625 points/m2	≥15625 points/m2	≥10000 points/m2
Scanning Mode:	1/16 scan	1/16 scan	1/16 scan	1/13 scan	1/10 scan	1/8 scan	1/8 scan	1/8 scan	1/5 scan	1/4 scan	1/2 scan /4/1 scan
Module Brightness:	≥4000CD/m2	≥4000CD/m2	≥4500CD/m2	≥4500CD/m2	≥4500CD/m2	≥5000CD/m2	≥5000CD/m2	≥5000 CD/m2	≥5000 CD/m2	≥5000 CD/m2	≥5000 CD/m2
Module Resolution:	128x64/points	64x64/points	64x64/points	104x52/points	80x40/points	64x32/points	64x32/points	32x32/points	40x20/points	32x16/points	32x16/points
Refresh Rate:	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ	≥1920HZ 3840HZ
Service Life:	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours
Viewing Distance:	≥3m-80m	≥3m-80m	≥4m-80m	≥4m-80m	≥5m-80m	≥5m-80m	≥5m-80m	≥7m-80m	≥9m-80m	≥9m-80m	≥12m-90m
Average Power:	≤350W/m2	≤380W/m2	≤380W/m2	≤350W/m2	≤350W/m2	≤380W/m2	≤350W/m2	≤380W/m2	≤350W/m2	≤380W/m2	≤350W/m2
Maximum Power:	≤1000W/m2	≤1200W/m2	≤1200W/m2	≤1000W/m2	≤1000W/m2	≤120W/m2	≤1000W/m2	≤1200W/m2	≤1000W/m2	≤1200W/m2	≤1000W/m2
Frame change frequency	50-60HZ
Grayscale	12-16bit
Continuous working time	≥7×24hours，supports continuous and uninterrupted display
Mean time between failures	≥10000 hours

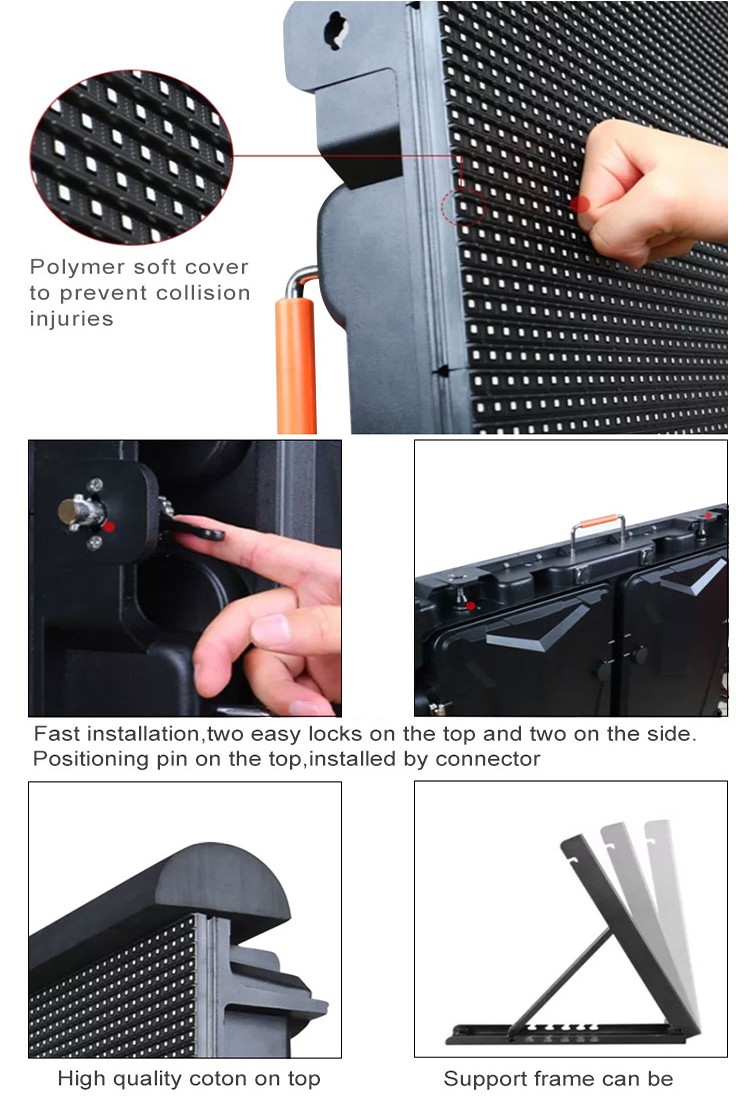

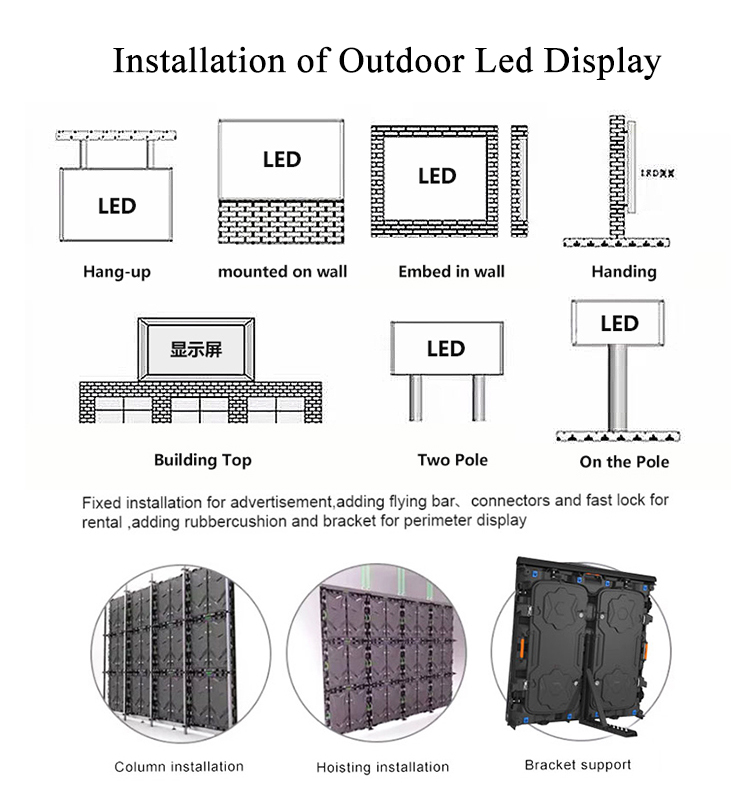

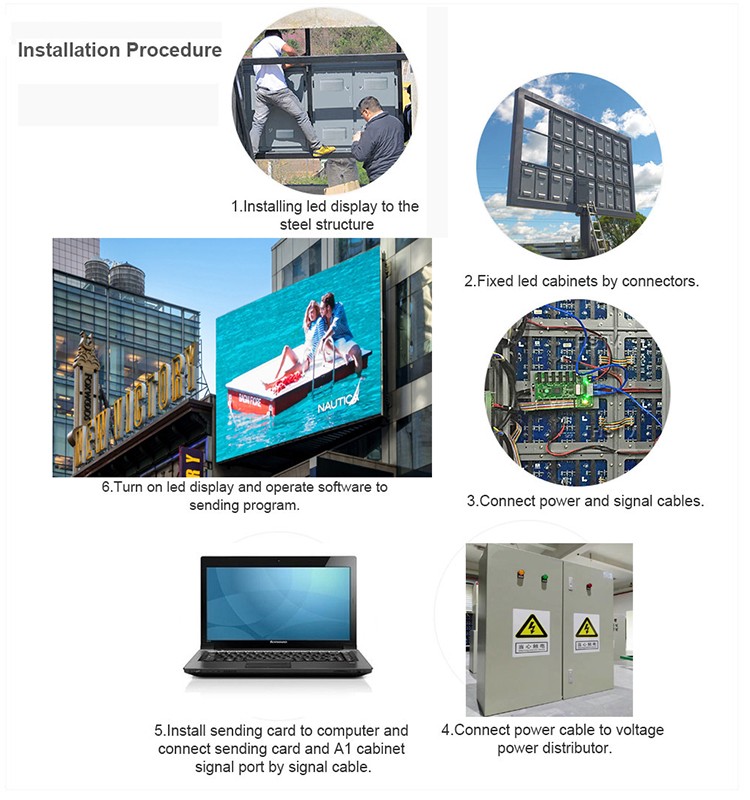

Maintenance/installation method	Front/back maintenance and installation
Discrete out-of-control point	≤0.0001，it's 0 when it leaves the factory
Blind spot rate	≤0.0001，it's 0 when it leaves the factory
Continuous out-of-control point	0
Waterproof grade	IP65
Visual Angle	Horizontal≥160° Vertical≥140°
Operating temperature	‘-45℃ +50℃
Working humidity	30-55%
