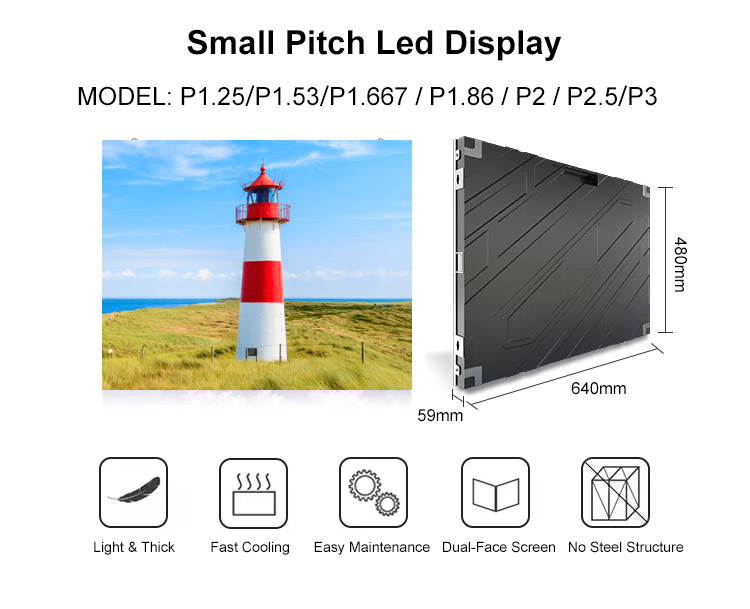

Small Pixel Pitch LED Display Screen
Special-shaped LED Display Screen
Outdoor Flexible LED Display
Indoor Flexible LED Display Screen
Rental LED Display Screen

All Small Categorys

Fixed Digital LED Screen for Indoor Advertising

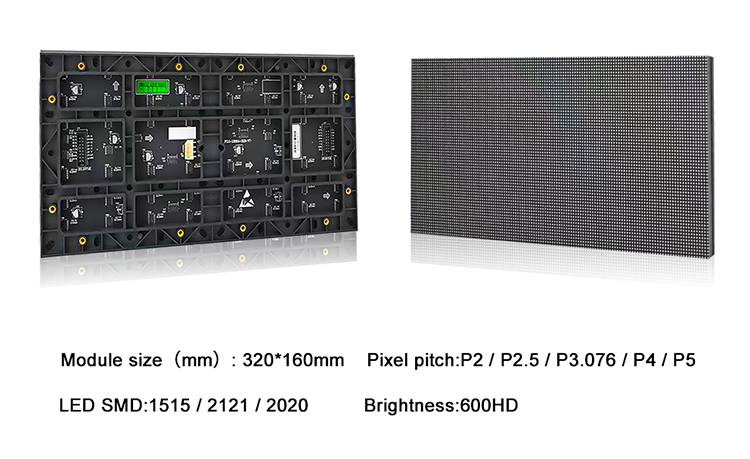

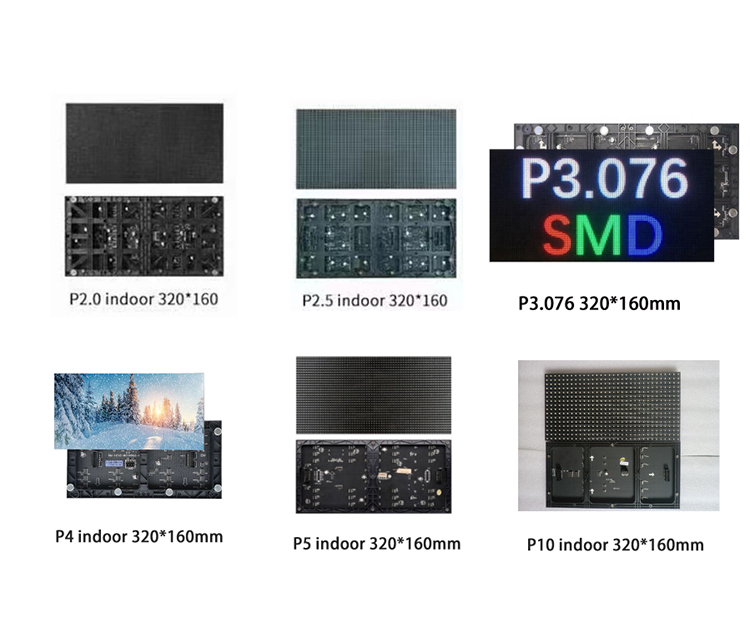

Indoor Led Display Screen : P2,  P2.5 ,  P3,  P4,  P5

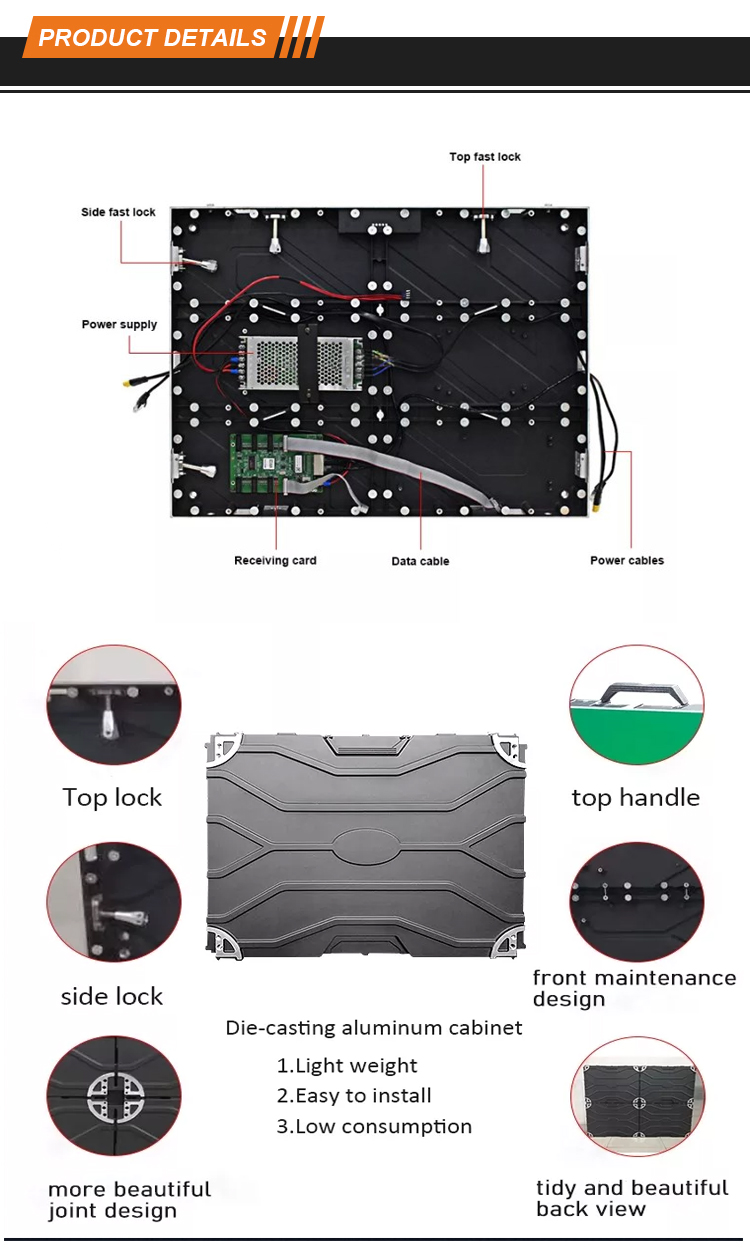

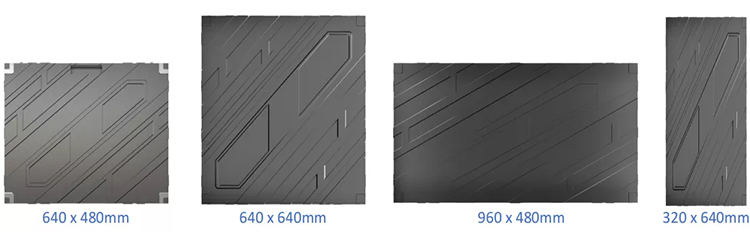

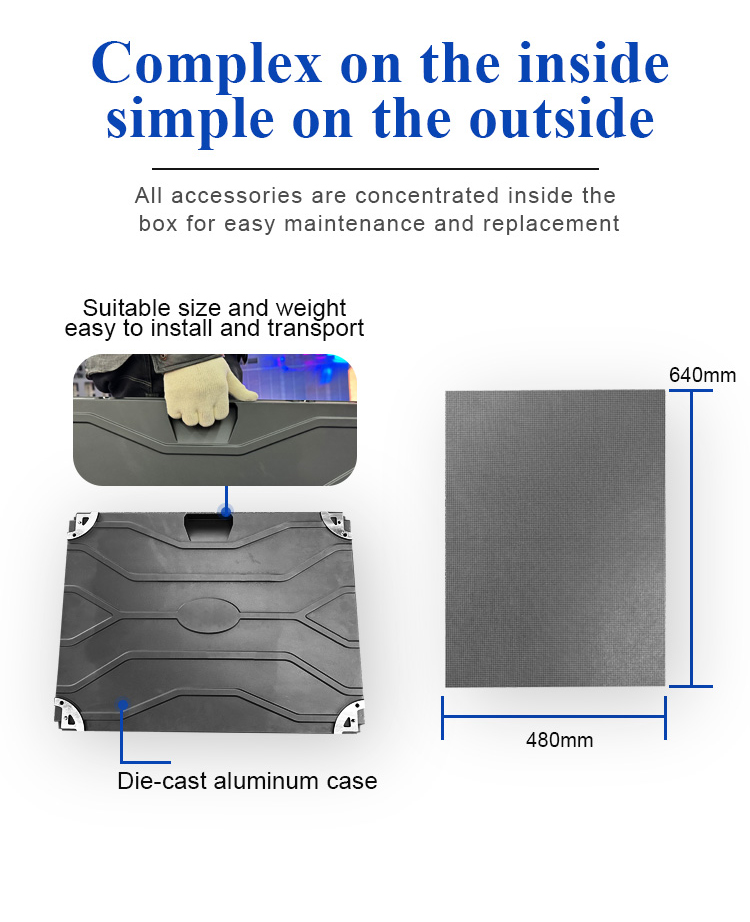

Die-cast aluminum cabinet and Simple cabinet

  • Cutting-edge Tech for Optimal Viewing: Utilizes SDM three in one technology, ensuring an ultra-wide viewing angle and enhanced flatness, presenting a seamless visual display.
  • Exceptional Visual Fidelity: Through RGB deep grayscale processing, it offers rich colors, high-definition, and detailed image quality, capturing every nuance precisely.
  • Robust and Durable: Supports point-by-point correction, is tensile and shockproof, with self-cooling and a decade-long lifespan, guaranteeing stable performance.
  • Quality and Reliability: Mass-produced with mature technology and top-notch materials, ensuring consistent and dependable quality.
  • Tailored to Your Needs: A comprehensive range available, customizable to suit diverse indoor applications, be it advertising, commercial use, or staging.
  • Description
Is there a problem?<br>Please contact us to serve you!

Is there a problem?
Please contact us to serve you!

Inquiry

1、High-Definition Resolution: Delivers a crystal-clear, detailed picture with high brightness and clarity, rendering every image detail accurately.

2、High Color Saturation: Boasts excellent color separation and rapid color processing, achieving high color saturation for vivid and engaging visuals.

3、Superior Craftsmanship: Manufactured with a refined process, ensuring enhanced reliability and a smoother surface for distortion-free viewing.

4、Low Power Consumption: Efficient heat dissipation leads to reduced power usage, prolonging product life and offering a cost-effective solution with fewer faults.

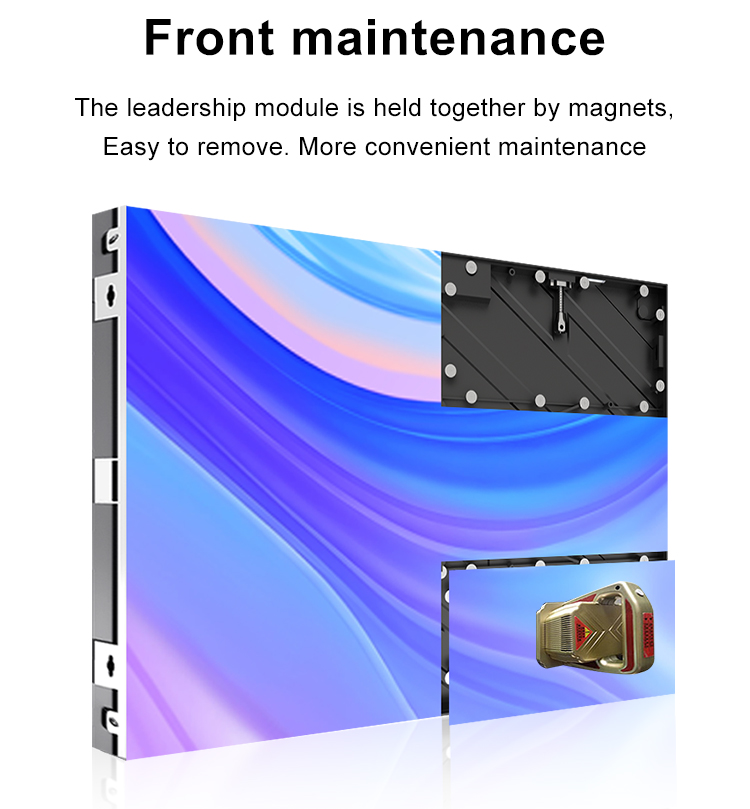

5、Easy Maintenance: Magnetic suction module design allows for quick and convenient disassembly and replacement. Remote debugging and maintenance of the playback system ensure minimal downtime.

Indoor led display screen parameters
Model number  P 1 . 25 P 1.538 P 1.86 P 2 P 2.5 P 3 P 4 P 4 P 5
Pixel spacing  1.25mm 1.538mm 1.86mm 2mm 2.5mm 3 mm 4mm 4mm 5mm
Module size  320x160mm 320x160mm 320x160mm 320x160mm 320x160mm 192x192mm 256x128mm 320x160mm 320x160mm
Encapsulation mode  SMD1010 SMD1212 SMD1515 SMD1515 SMD2020 SMD2020 SMD2020 SMD2020 SMD2020
Physical density  640000dots/m2 423866dots/m2 289050dots/m2 250000dots/m2 160000dots/m2 111111dots/m2 62500dots/m2 62500dots/m2 40000dots/m2
Scanning mode  1/64 scans 1/52 scans 1/43 scans 1/40 scans 1/32 scans 1/32 scans 1/16 scans 1/20 scans 1/16 scans
Module brightness  600CD/m2 650CD/m2 700CD/m2 800 CD/m2 700CD/m2 700CD/m2 800CD/m2 800 CD/m2 800 CD/m2
Module resolution  256x128/dots 208x104/dots 172x86/dots 160x80/dots 128x64/dots 64x64/dots 64x32/dots 80x40/dots 64x32/dots
Refresh rate  ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ ≥1920HZ          3840HZ ≥1920HZ          3840HZ ≥1920HZ            3840HZ ≥1920HZ            3840HZ ≥1920HZ          3840HZ
Life span ≥100000 Hours ≥100000 Hours ≥100000 Hours ≥100000 Hours ≥100000Hours ≥100000Hours ≥100000Hours ≥100000Hours ≥100000Hours
Viewing distance  1.7m-50m 2m-50m 2.5m-60m 3m-80m 3.5m-60m 4.5m-60m 5m-60m 6m-60m 6m-60m
Average power  ≤280W/m2 ≤280W/m2 ≤280W/m2 ≤280W/m2 ≤280W/m2 ≤280W/m2 ≤280W/m2 ≤280W/m2 ≤280W/m2
Maximum power  ≤800W/m2 ≤800W/m2 ≤800W/m2 ≤800W/m2 ≤800W/m2 ≤800W/m2 ≤800W/m2 ≤800W/m2 ≤800W/m2
Frame change frequency 50-60HZ
Grayscale 12-16bit
Continuous working time ≥7×24hours,Supports continuous and uninterrupted display
Mean time between failures ≥10000 Hours

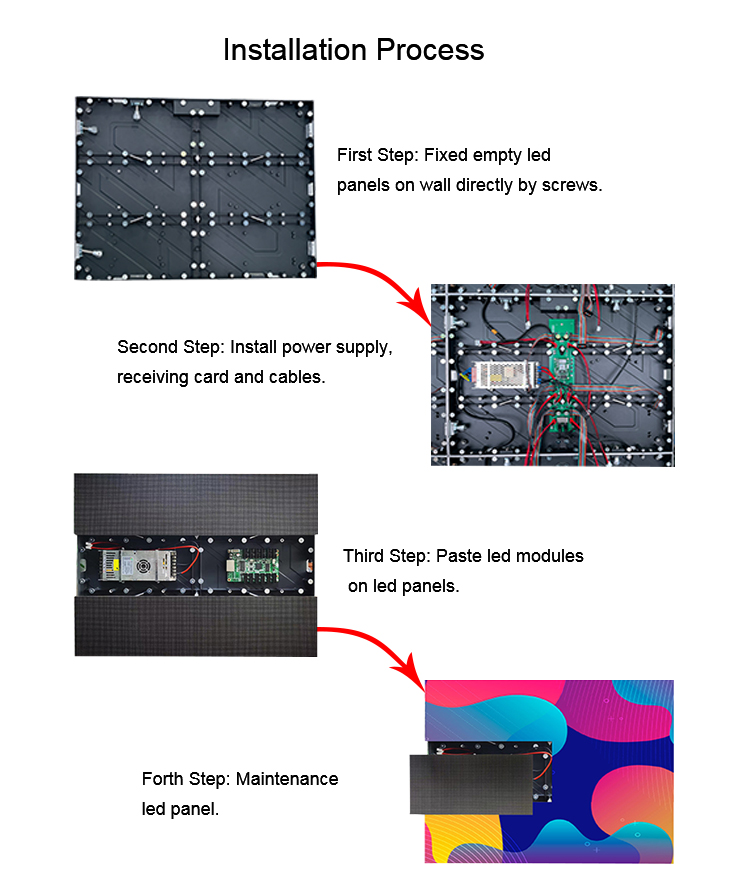

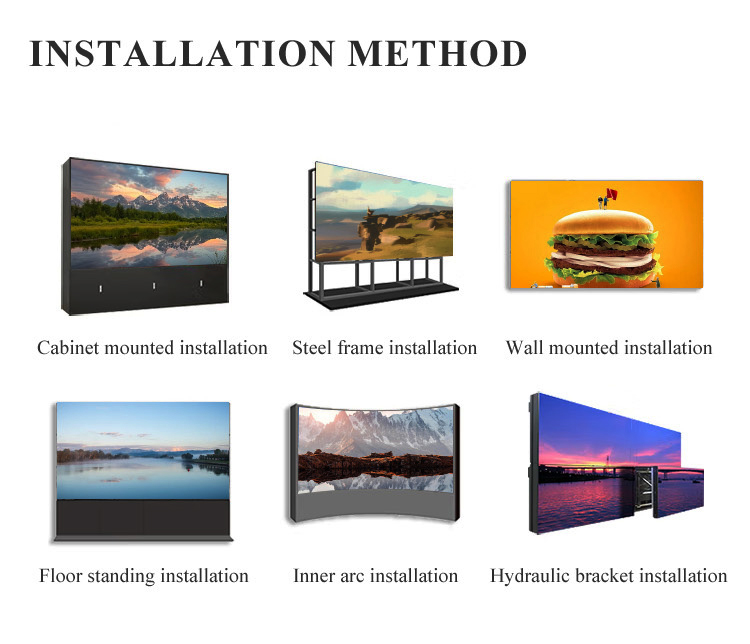

Maintenance/installation method Front/back maintenance and installation
Discrete out-of-control point ≤0.0001,It's zero when it leaves the factory
Blind spot rate ≤0.0001,It's zero when it leaves the factory
Continuous out-of-control point 0
Waterproof grade IP43
Visual Angle  160°/140°
Operating temperature  -45   +50
Working humidity  30-55%

1.jpg1-1.png1-2.jpg1-2-1.png1-3.jpg1-4.jpg1-5.jpg1-6.jpg1-7.jpg1-8.jpg1-9.jpg1-10.jpg1-11.jpg1-12.jpg1-13.png
