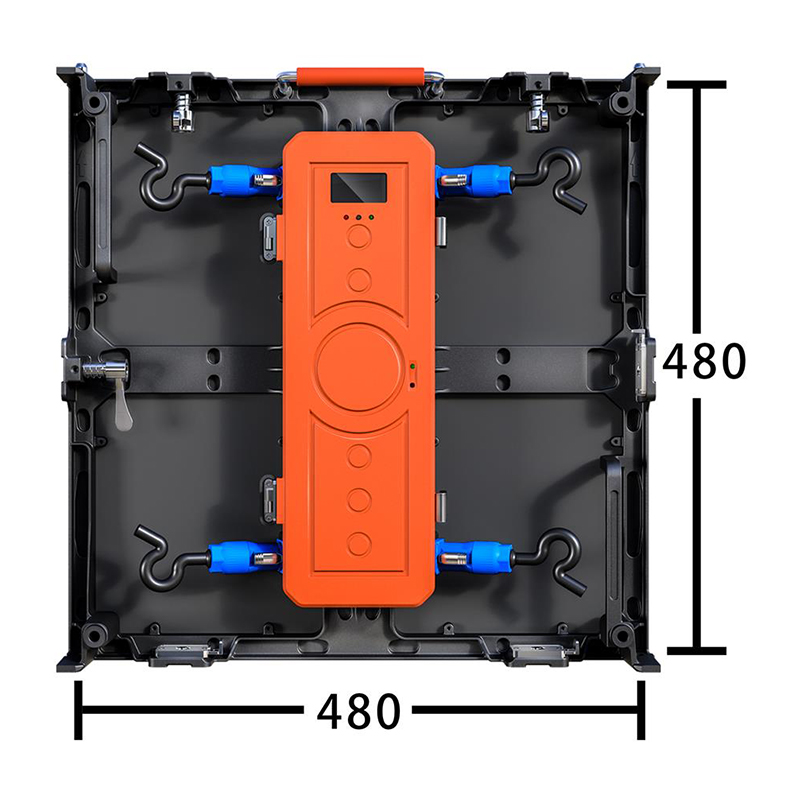

Indoor Small Pixel Pitch 480 480-B Cabinet

  • Description
Is there a problem?<br>Please contact us to serve you!

Is there a problem?
Please contact us to serve you!

Inquiry

A Brief Description:

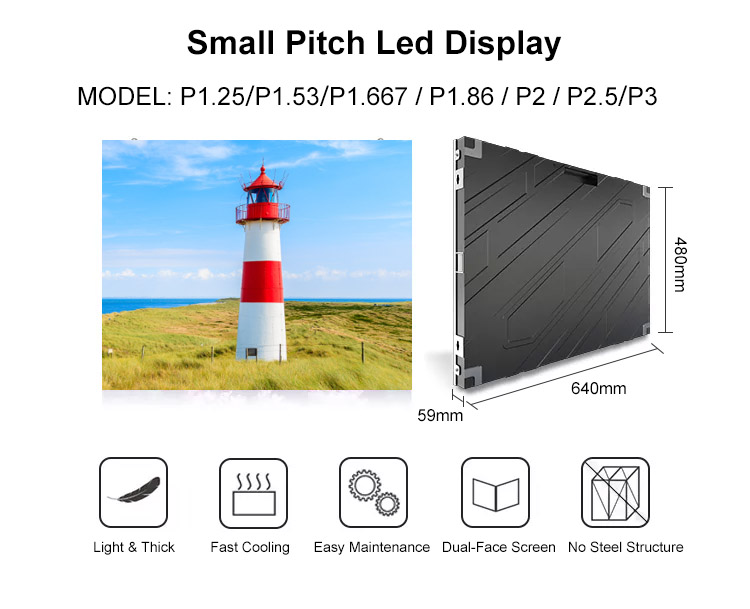

Fine Pitch Led Display Screen : P1.25,  P1.538 ,  P1.667,  P1.86,  P2

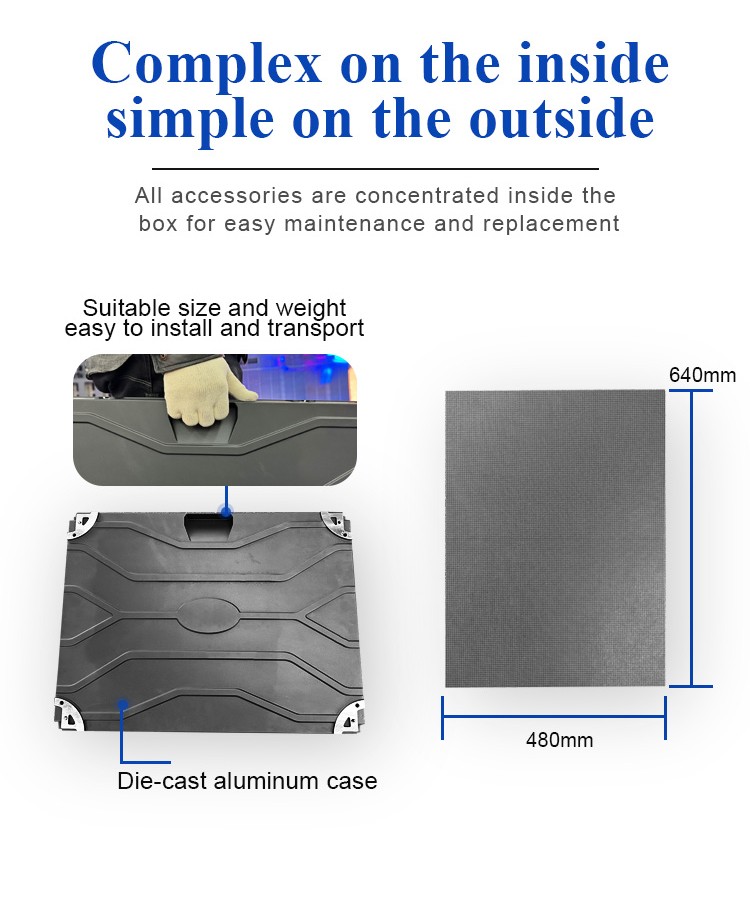

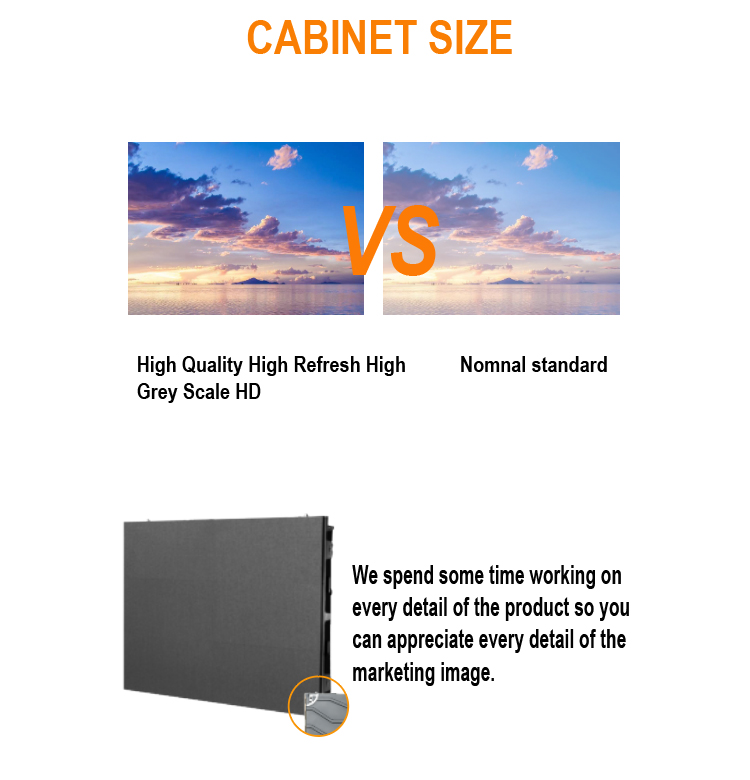

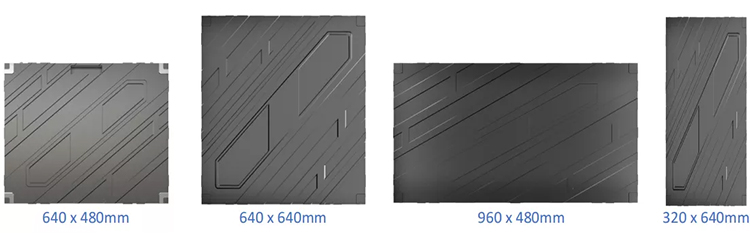

640*480mm Die-cast aluminum cabinet


1 . The small spacing series features high contrast and grayscale levels, resulting in higher definition and finer visuals.

2. The cabinet is light and thin, with a weight of about 10Kg and a thickness of 75mm, making it easy to disassemble and transport.

3. Imported die-casting aluminum alloy integrated molding process, fixed reinforcement analysis inside the screen body, tensile and shockproof, self cooling, and a lifespan of up to ten years.

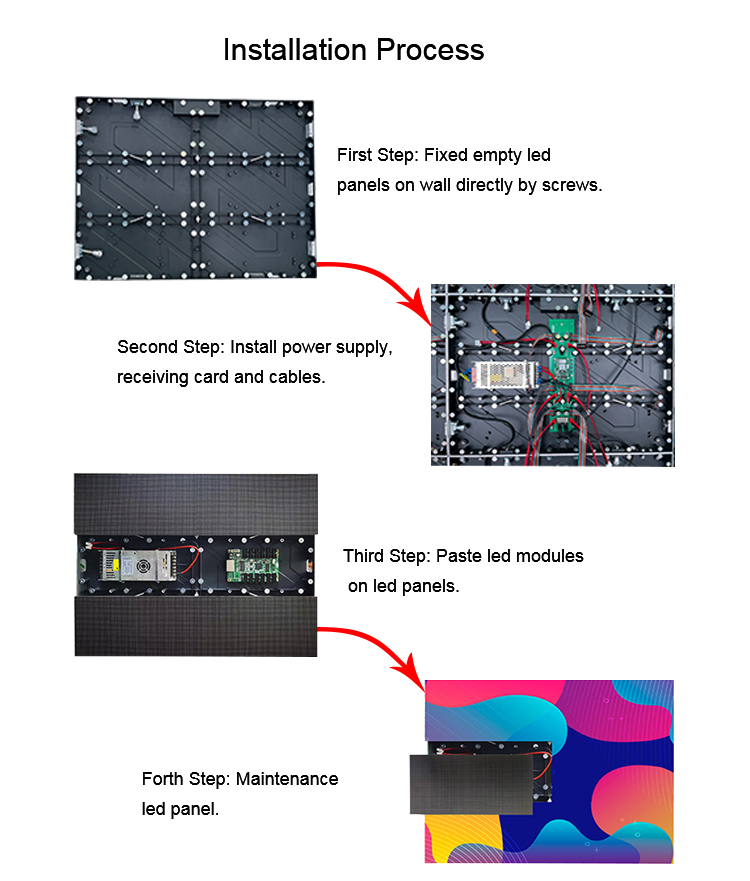

4.Fixed with four side lock buckles, hoisted and stacked, balanced stress, perfect for fast installation and disassembly.


5.The humanized power supply and signal indicator light make it easy to check the working status of the screen and make timely adjustments in case of malfunctions.

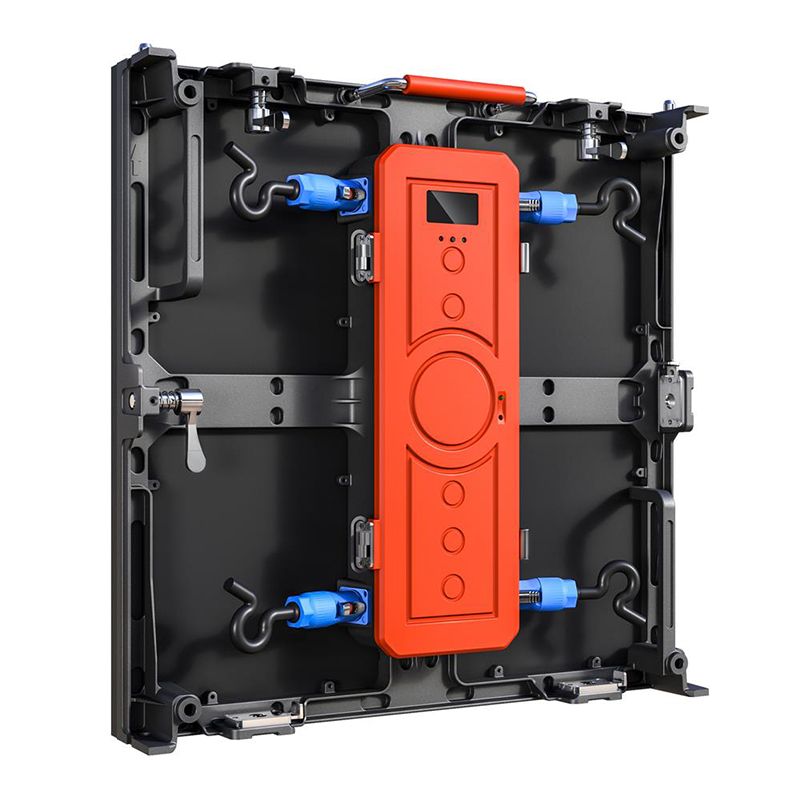

6. The connectors are selected from professional aviation plugs with guaranteed quality and safety.

Detailed Description:

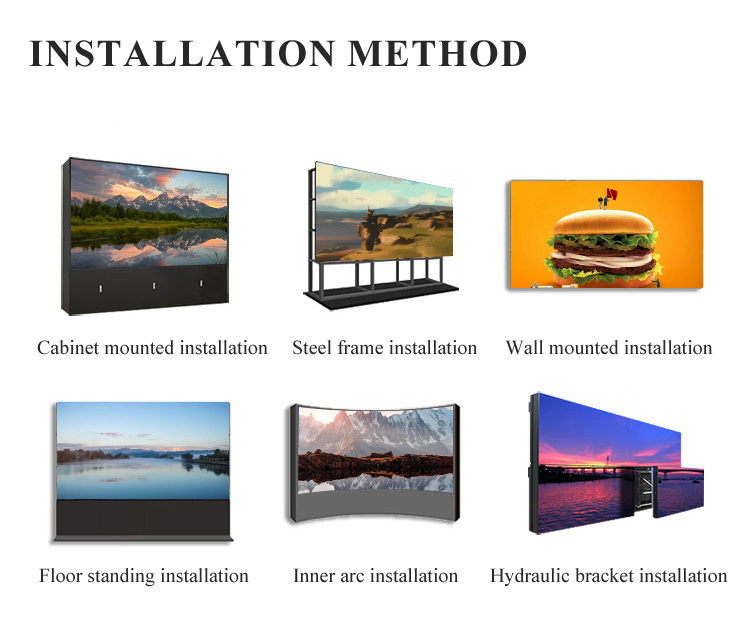

1、CNC precision machined die-casting aluminum cabinet, high-precision, ultra-light and thin, occupying less space, supports wall mounted installation without the need to reserve maintenance channels.

2、 Low brightness and high gray images are delicate and realistic; Ultra wide viewing angle, capable of displaying high-quality display effects from various angles.

3、High brightness, high contrast, and high consistency bring excellent visual experience.

4、 High refresh display, fast frame changing speed, eliminating ghosting and no trailing.

5、Low power consumption, low heat, good heat dissipation, and no noise.

6、With a service life of over 100000 hours, the product is stable and reliable, supports maintenance, and has low maintenance costs in the later stage.


Product Parameter Table:

Small pitch led display screen parameters
Model number P 1 . 25P 1 . 25P 1.538P 1.667P 1.667P 1.86P 2P 2
Pixel spacing 1.25mm1.25mm1.538mm1.667 mm1.667mm1.86mm2mm2mm

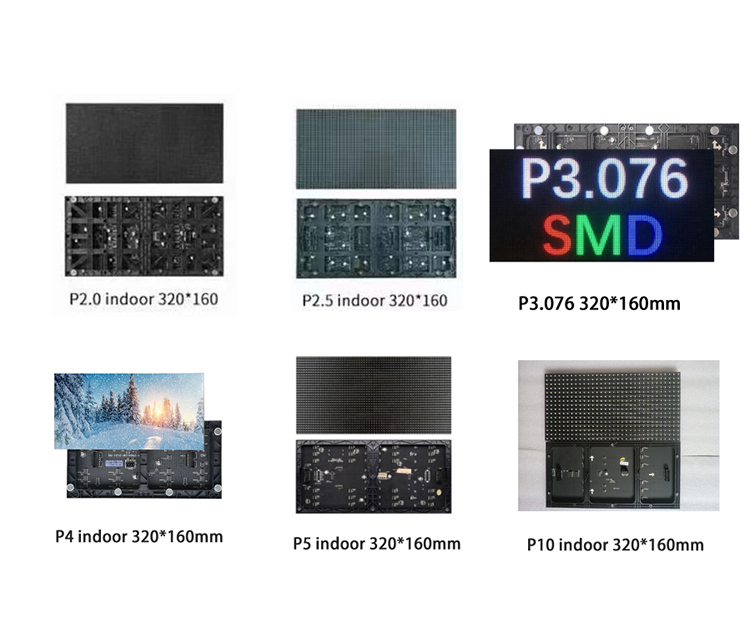

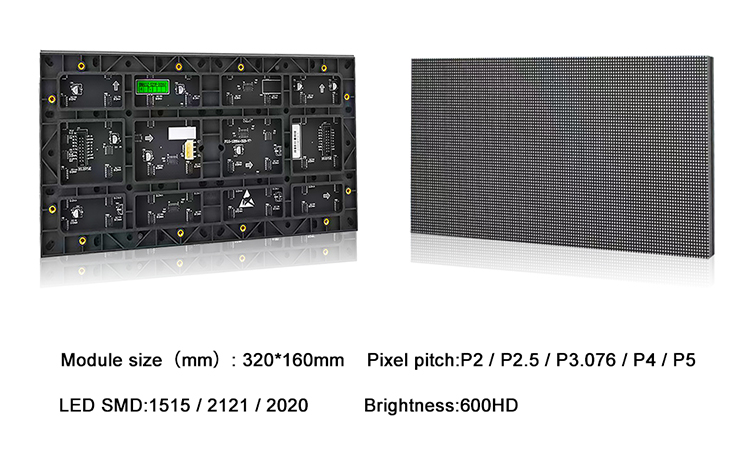

Module size 320x160mm320x168mm320x160mm320x160mm240x240mm320x160mm256x128mm320x160mm
Encapsulation mode SMD1010SMD1010SMD1212SMD1212SMD1212SMD1515SMD1515SMD1515
Physical density 640000dots/m2640000dots/m2423866dots/m2359856dots/m2359856dots/m2289050dots/m2250000dots/m2250000dots/m2
Scanning mode 1/64 scans1/45 scans1/52 scans1/48 scans1/27 scans1/43 scans1/32 scans1/40 scans
Module brightness 600CD/m2600CD/m2650CD/m2650CD/m2700CD/m2700CD/m2800 CD/m2800 CD/m2
Module resolution 256x128/dots240x135/dots208x104/dots192x96dots144x144/dots172x86/dots128x64/dots160x80/dots
Refresh rate ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ
Life span≥100000 Hours≥100000 Hours≥100000 Hours≥100000 Hours≥100000 Hours≥100000 Hours≥100000 Hours≥100000 Hours
Viewing distance 1.7m-50m1.7m-50m2m-50m2.5m-60m2.5m-60m2.5m-60m3m-80m3m-80m
Average power ≤280W/m2≤280W/m2≤280W/m2≤280W/m2≤280W/m2≤280W/m2≤280W/m2≤280W/m2
Maximum power ≤800W/m2≤800W/m2≤800W/m2≤800W/m2≤800W/m2≤800W/m2≤800W/m2≤800W/m2
Frame change frequency50-60HZ
Grayscale12-16bit
Continuous working time≥7×24hours,Supports continuous and uninterrupted display
Mean time between failures≥10000 Hours

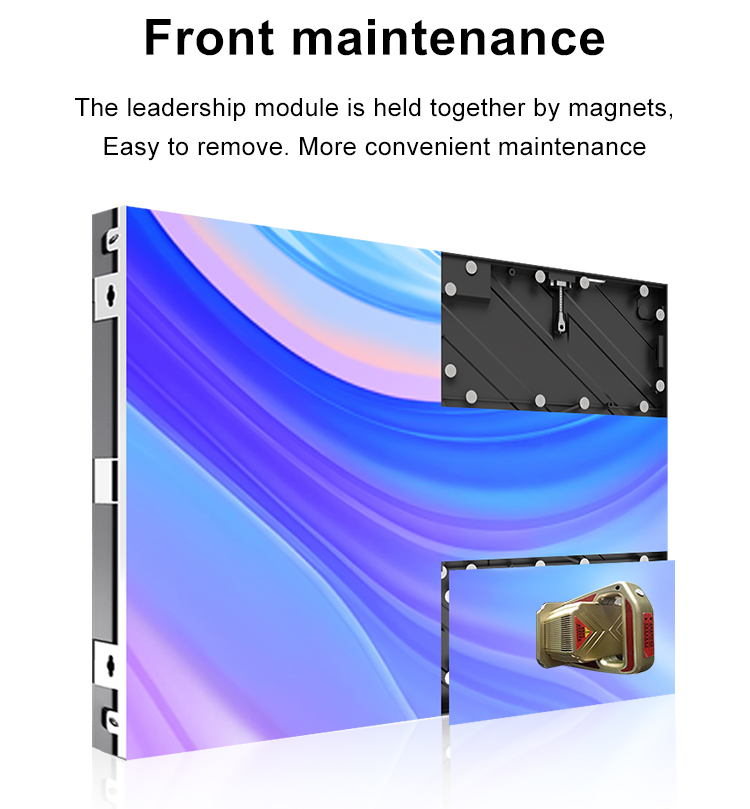

Maintenance/installation methodFront/back maintenance and installation
Discrete out-of-control point≤0.0001,It's zero when it leaves the factory
Blind spot rate≤0.0001,It's zero when it leaves the factory
Continuous out-of-control point0
Waterproof gradeIP43

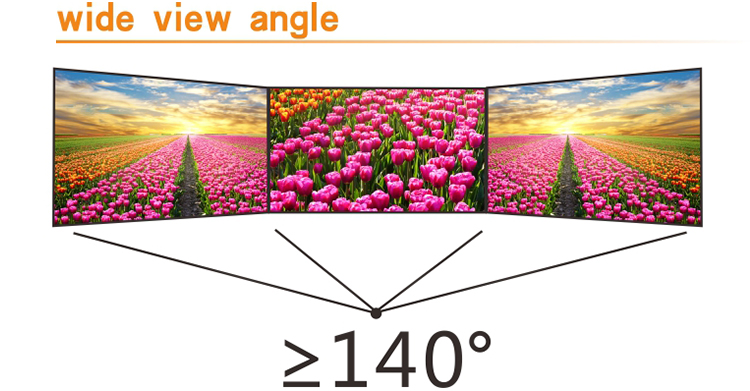

Visual Angle 160°/140°
Operating temperature -45   +50
Working humidity 30-55%
